Heavy Duty Universal Joints

Universal Joints For Heavy Duty Applications

Belden's Heavy-Duty universal joints are high-quality joints for a variety of standard applications with moderate loads and RPM. They feature friction (plain) bearing design, with large & small pins and snap rings. Manufactured from high-grade alloy steel for increased durability and better performance than standard industrial-grade models. Heavy Duty U joint components are selectively heat-treated, precision machined and ground to close tolerances. The Heavy Duty universal joint provides exceptional service life for demanding applications. All joints are available with or without a lubricant retaining boot.

Features:

  • Breaking Torque: 11-12,429 N-m for Single and 10-11,186 N-m for Double Joints
  • Operating Speed: up to 1000 RPM (depending on lubrication)
  • Friction (plain) bearing construction
  • Large-pin small-pin design with snap ring
  • High-grade alloy steel
  • Hardened & ground yoke ears, pins and blocks

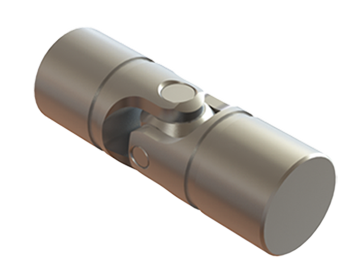

Heavy Duty Single Universal Joint

Heavy Duty Single Universal Joint

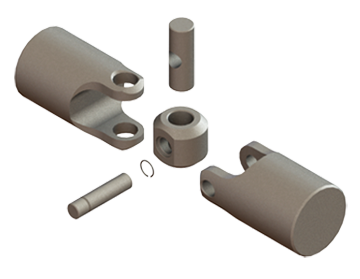

Heavy Duty Single Universal Joint - Exploded View

Heavy Duty Single Universal Joint - Exploded View

Heavy Duty U-Joint Customizations

Heavy Duty u joints can be customized by bores, keyways, special hub configurations. They can be manufactured from a wide variety materials and finished with specialty coatings and platings. Components can be outfitted with lubricant retaining boots, containing specialty lubricants for a variety of industries and applications.

Customization options for universal joints:
