General Information
Part Name:

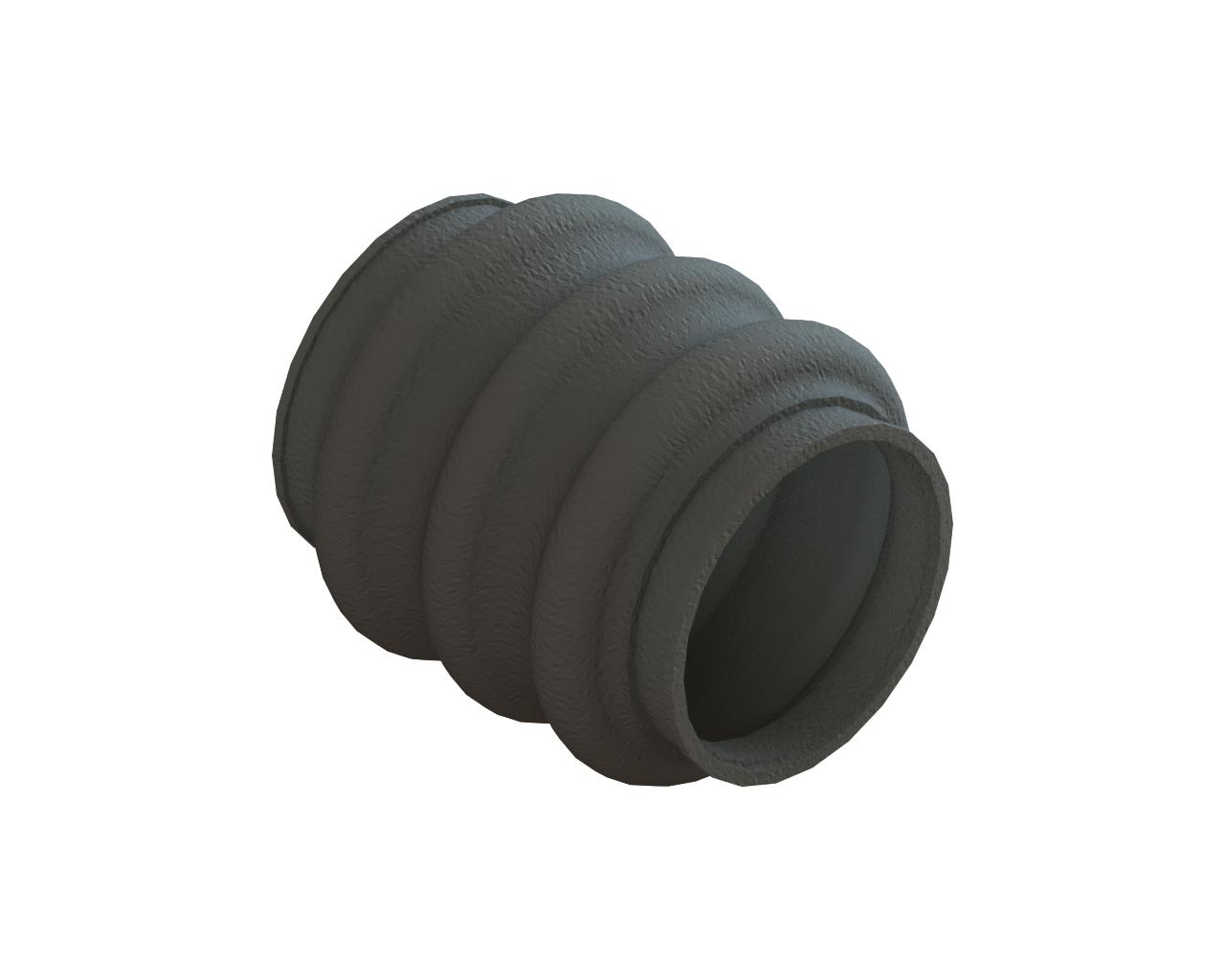

Boot Cover - Single Universal Joint
Joint Outside Diameter Nominal D (in):
1"
Product Specifications
Part Type:
Single Universal Joint
Part Design:
Boot Cover
Part Style:
Boot Cover
Part Material:
Nitrile
Performance Data
Operating_Angle:
45

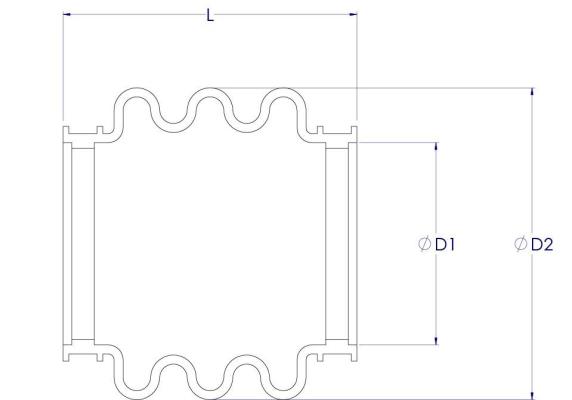

Dimensional Data
Joint Outside Diameter D (in):
0.995
Joint Outside Diameter D (mm):
25.30
Overall Length L1 (in):
1.500
Overall Length L1 (mm):
38.10
Bellows:
Triple
Additional info:

Excellent resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water and alcohol.
