375 BOOT-SL

Click to enlarge photo

General Information

Part Name:

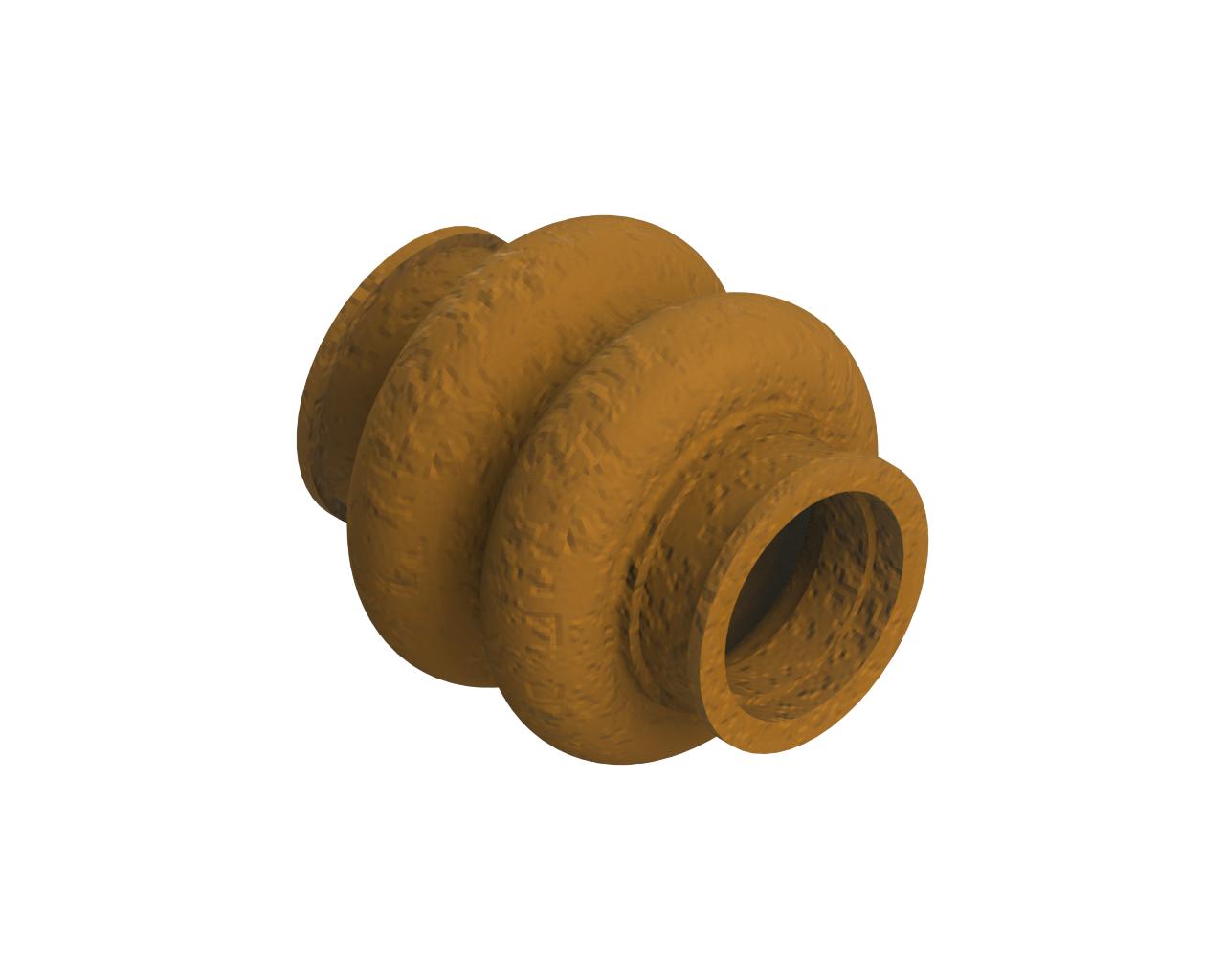

Boot Cover - Single Universal Joint

Joint Outside Diameter Nominal D (in):

3/8"

Product Specifications

Part Type:

Single Universal Joint

Part Design:

Boot Cover

Part Style:

Boot Cover

Part Material:

Silicone

Performance Data

Operating_Angle:

Dimensional Data

Joint Outside Diameter D (in):

0.370

Joint Outside Diameter D (mm):

9.40

Overall Length L1 (in):

0.880

Overall Length L1 (mm):

22.40

Bellows:

Double

Additional info:

Recommended for high temperature applications. High resistance to the aging effects of sunlight and ozone. Non-Toxic.
