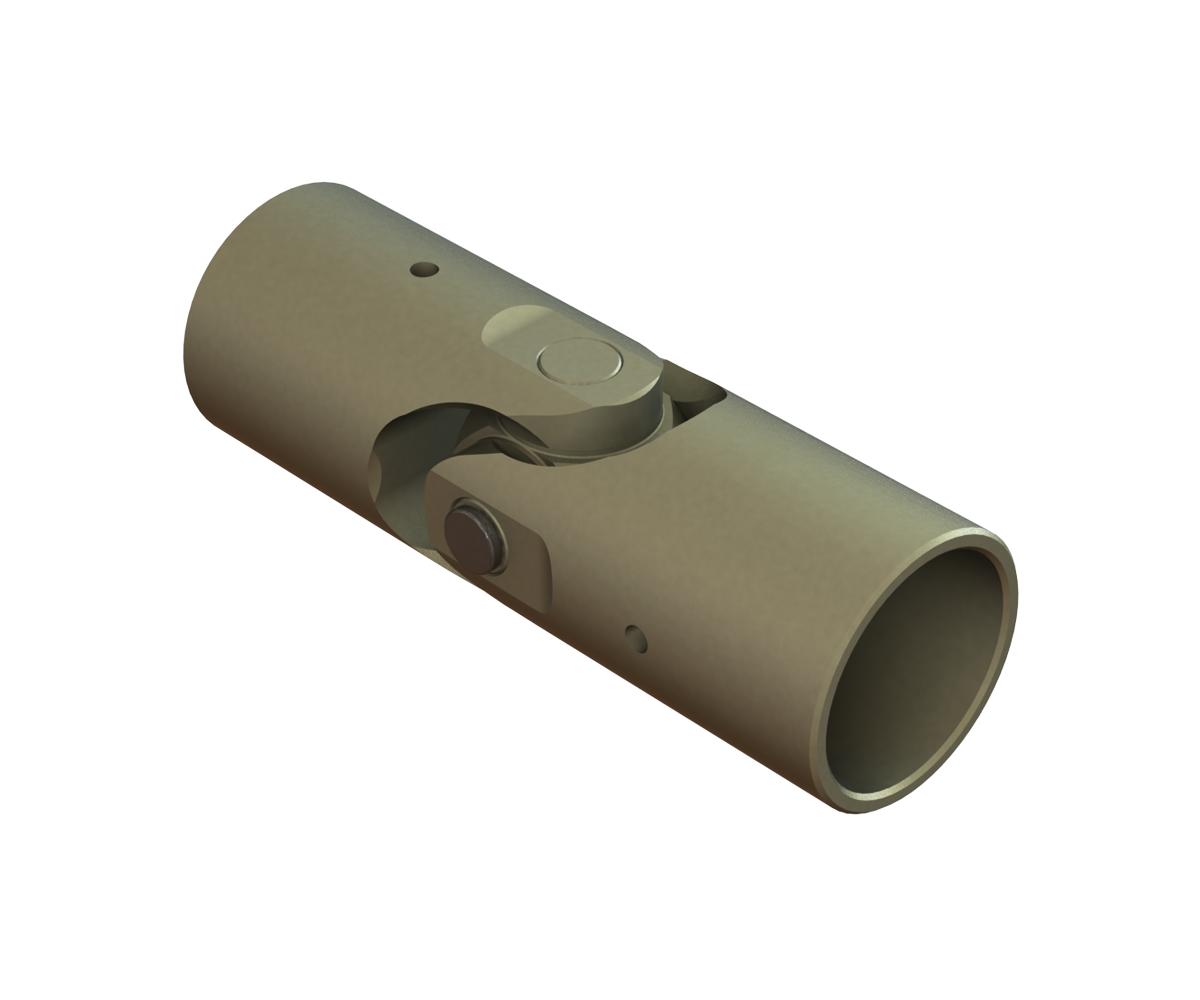

Military Standard Light Duty - Single Universal Joint MS20270B12
General Information
Military Standard Light Duty - Single Universal Joint
Joint Outside Diameter Nominal D (in)
3/4"
Product Specifications
Part Type
Single Universal Joint
Part Design
Military Standard Light Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

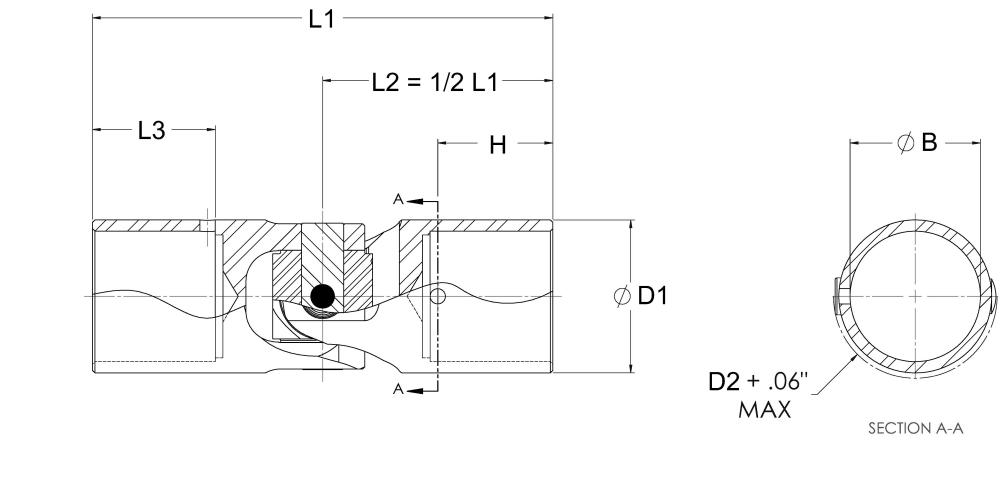

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
745.000
18.9
Insp. Hole Location H (in)
Insp. Hole Location H (mm)
687.000 17.40
Overall Length L1 (in)
Overall Length L1 (mm)
2.500 63.50
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.250
31.75
Hub Depth L3 (in)
Hub Depth L3 (mm)
875.000 22.23
Bore diameter B (in)
Bore diameter B (mm)
625.000 625.000
Bore Type
Bore
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
1000
113.00
Torque Rating (in-lbf)
Torque Rating (Nm)
150.0 16.9
Stall Torque (in-lbf)
Stall Torque (Nm)
500 56.5
Axial Failure Load (lbf)
400.0
Axial Failure Load (n)
1779.0
Operating Angle
35
Additional Data
Weight (kg)
0.1
Weight (lb)
0.14
