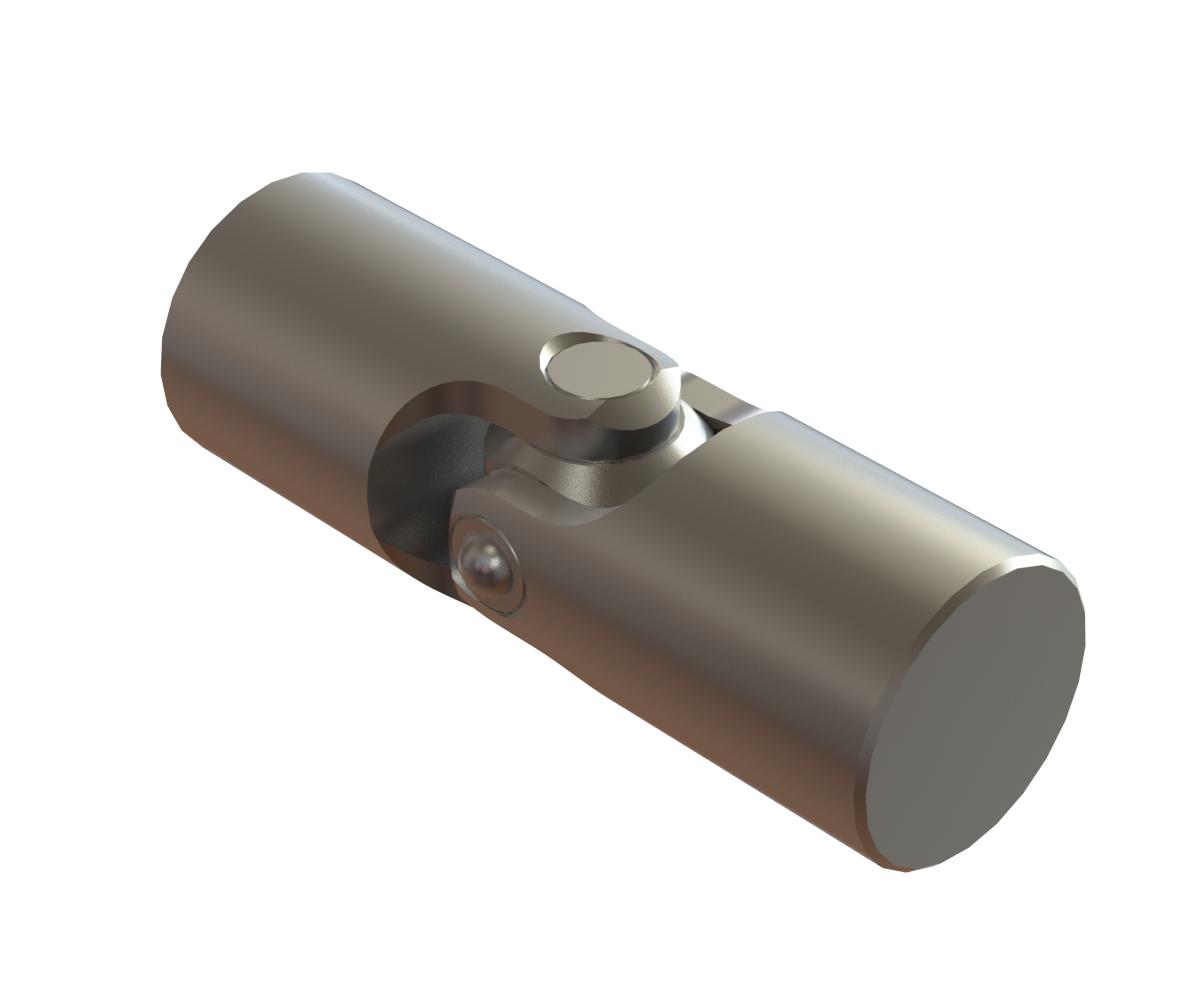

High Strength - Single Universal Joint UJ-HS500
General Information
High Strength - Single Universal Joint
Joint Outside Diameter Nominal D (in)
1/2"
Product Specifications
Part Type
Single Universal Joint
Part Design
High Strength
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

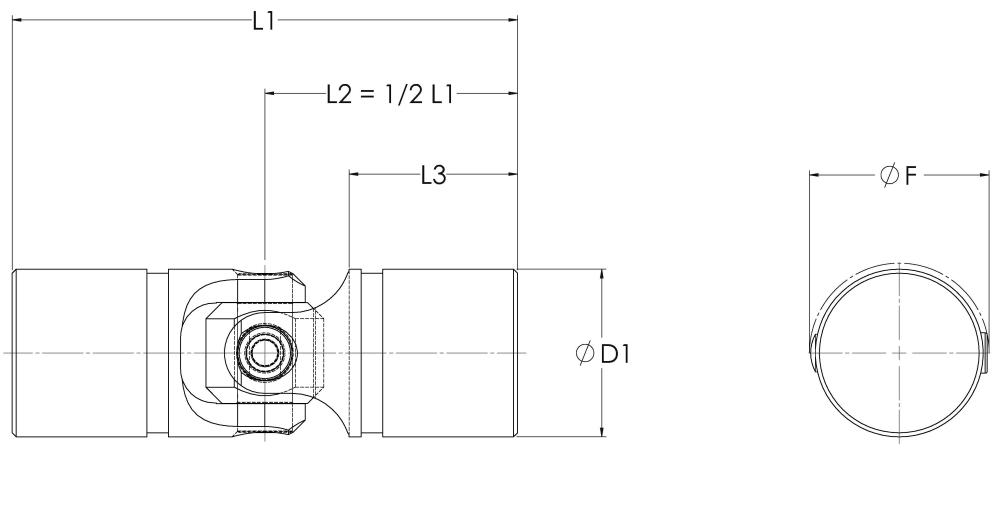

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
495.000
12.6
Overall Length L1 (in)
Overall Length L1 (mm)
2.000 50.80
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.000
25.40
Hub Depth L3 (in)
Hub Depth L3 (mm)
0.740 18.80
Bore Type
Solid
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
475
53.70
Torque Rating (in-lbf)
Torque Rating (Nm)
95.0 10.7
Stall Torque (in-lbf)
Stall Torque (Nm)
238 26.8
Operating Angle
45
Additional Data
Min Temp. Limit (°C)
-10.0
Min Temp. Limit (°F)
14.0
Max Temp. Limit (°C)
300.0
Weight (kg)
0.1
Weight (lb)
0.10
Additional Information
also available with customized bores / hub features on request
