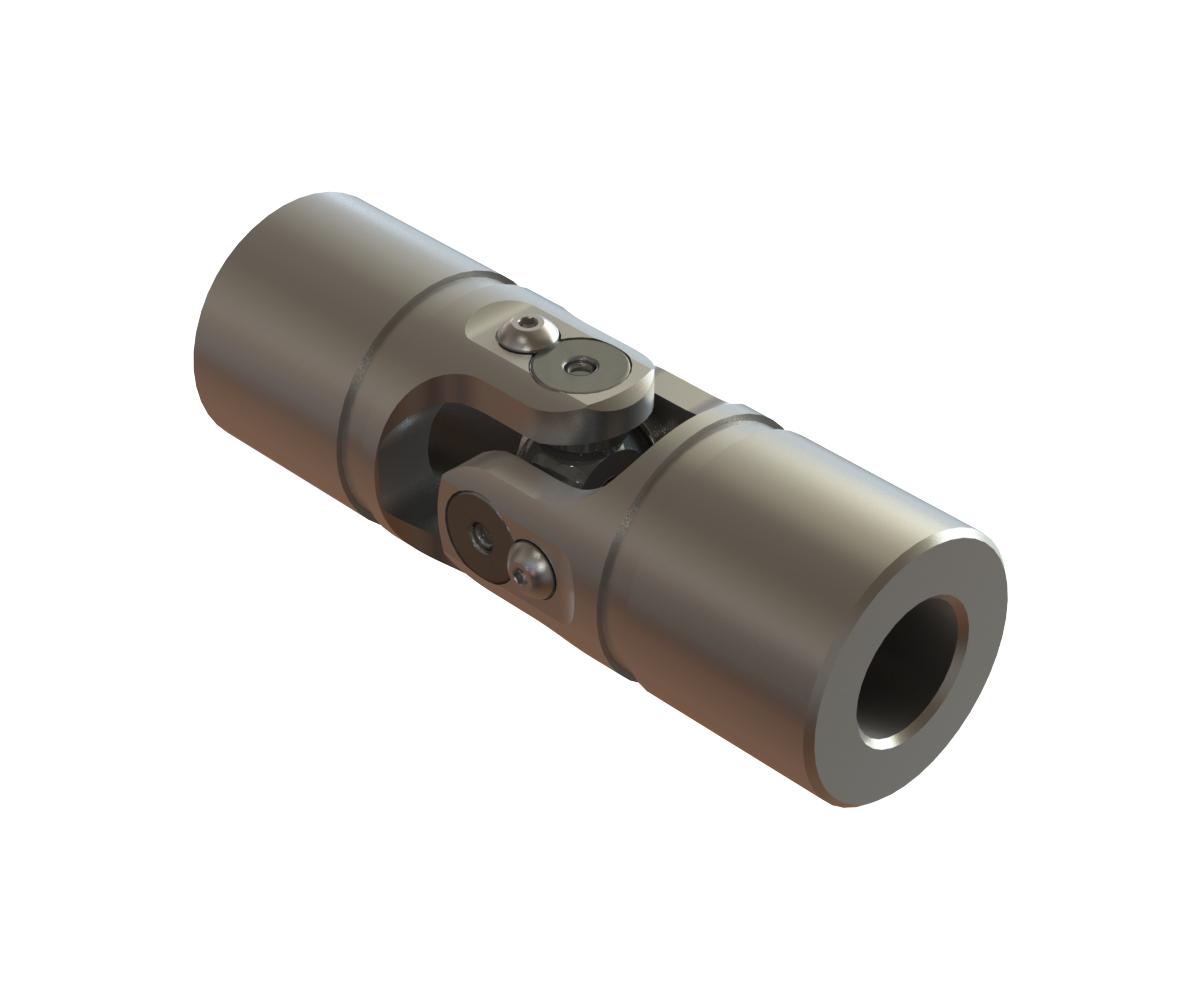

Needle Bearing Cross & Bearing - Single Universal Joint UJ-NB1000x500
General Information
Needle Bearing Cross & Bearing - Single Universal Joint
Joint Outside Diameter Nominal D (in)
1"
Product Specifications
Part Type
Single Universal Joint
Part Design
Needle Bearing Cross & Bearing
Part Style
Cross & Needle Bearing
Part Material
Alloy Steel

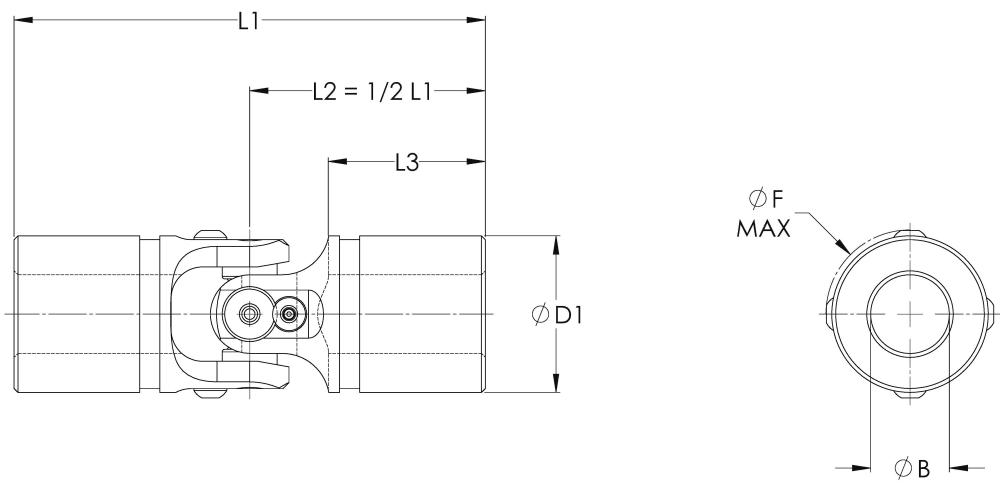

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
995.000
25.3
Overall Length L1 (in)
Overall Length L1 (mm)
3.375 85.73
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.688
42.86
Hub Depth L3 (in)
Hub Depth L3 (mm)
1.190 30.23
Bore diameter B (in)
Bore diameter B (mm)
0.500 0.500
Bore Type
Bore
Performance Data
Operating Angle
45
Additional Data
Min Temp. Limit (°C)
-62.0
Min Temp. Limit (°F)
-80.0
Max Temp. Limit (°C)
204.0
Weight (kg)
0.2
Weight (lb)
0.47
Additional Information
