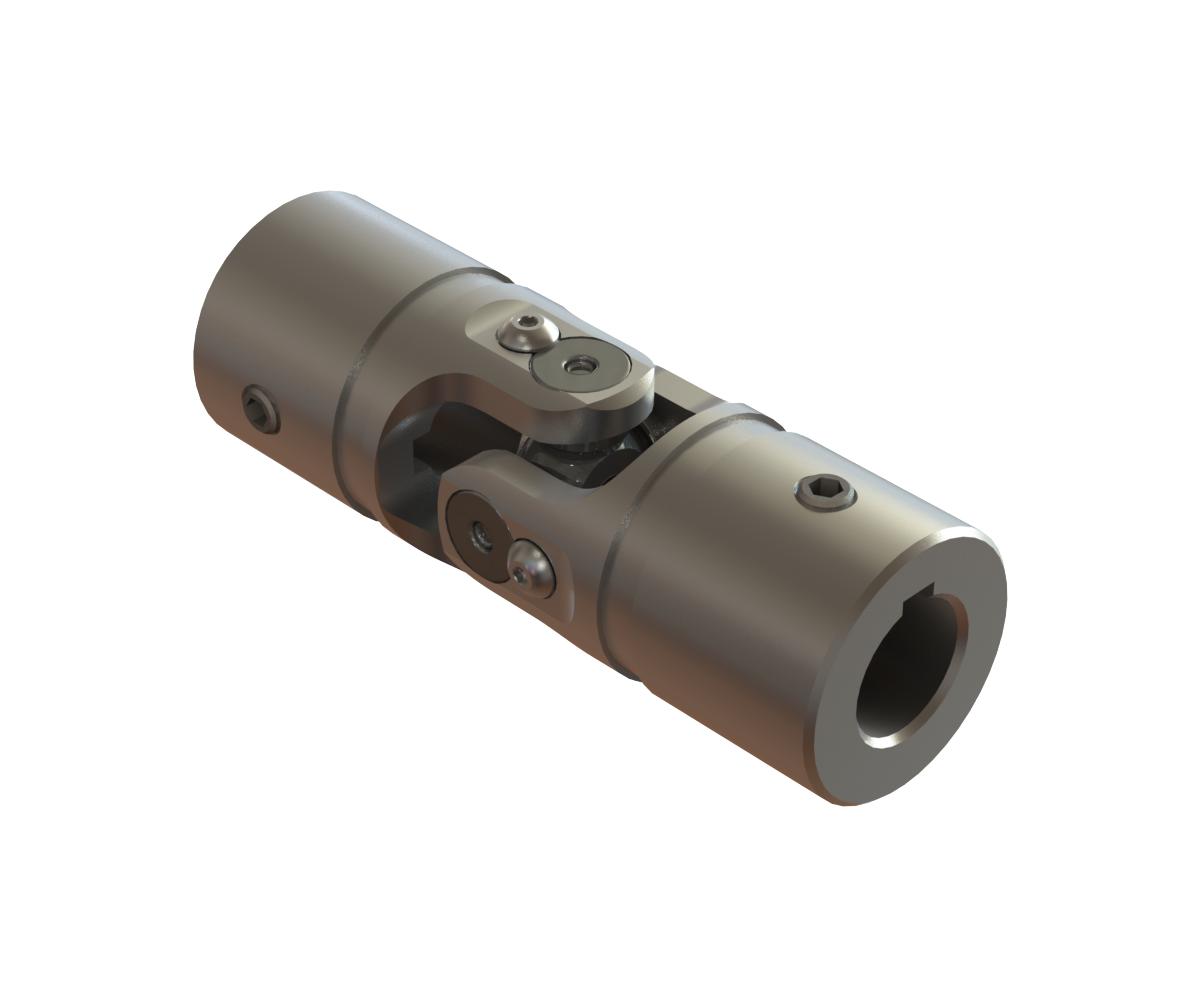

Needle Bearing Cross & Bearing - Single Universal Joint UJ-NB750x375K
General Information
Needle Bearing Cross & Bearing - Single Universal Joint
Joint Outside Diameter Nominal D (in)
3/4"
Product Specifications
Part Type
Single Universal Joint
Part Design
Needle Bearing Cross & Bearing
Part Style
Cross & Needle Bearing
Part Material
Alloy Steel

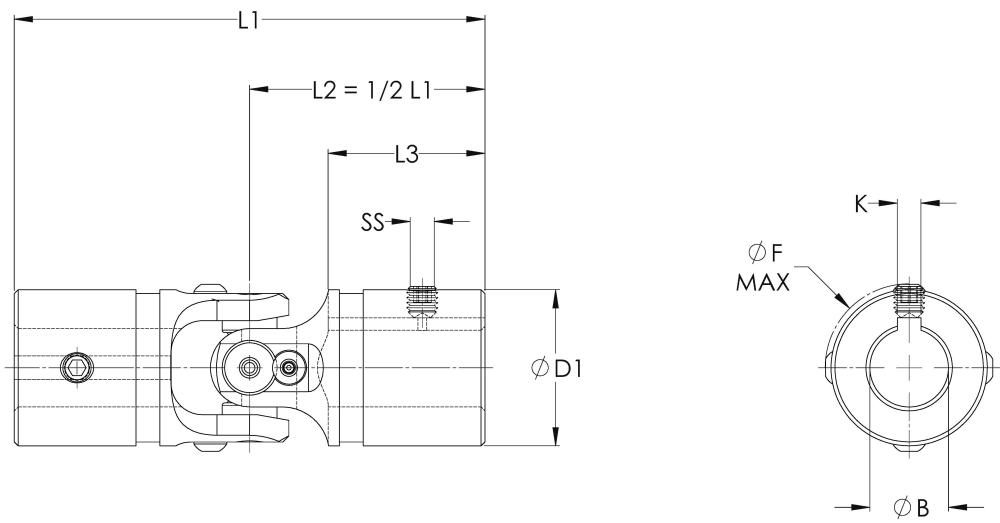

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
745.000
18.9
Overall Length L1 (in)
Overall Length L1 (mm)
2.688 68.28
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.344
34.14
Hub Depth L3 (in)
Hub Depth L3 (mm)
0.950 24.13
Bore diameter B (in)
Bore diameter B (mm)
375.000 375.000
Keyway K (in)
Keyway K (mm)
3/32 x 3/64
2.38x1.19
Set Screw
10-32x1/8
Bore Type
Bore, Keyway & Setscrew
Performance Data
Operating Angle
45
Additional Data
Min Temp. Limit (°C)
-62.0
Min Temp. Limit (°F)
-80.0
Max Temp. Limit (°C)
204.0
Weight (kg)
0.1
Weight (lb)
0.21
