Part Name:

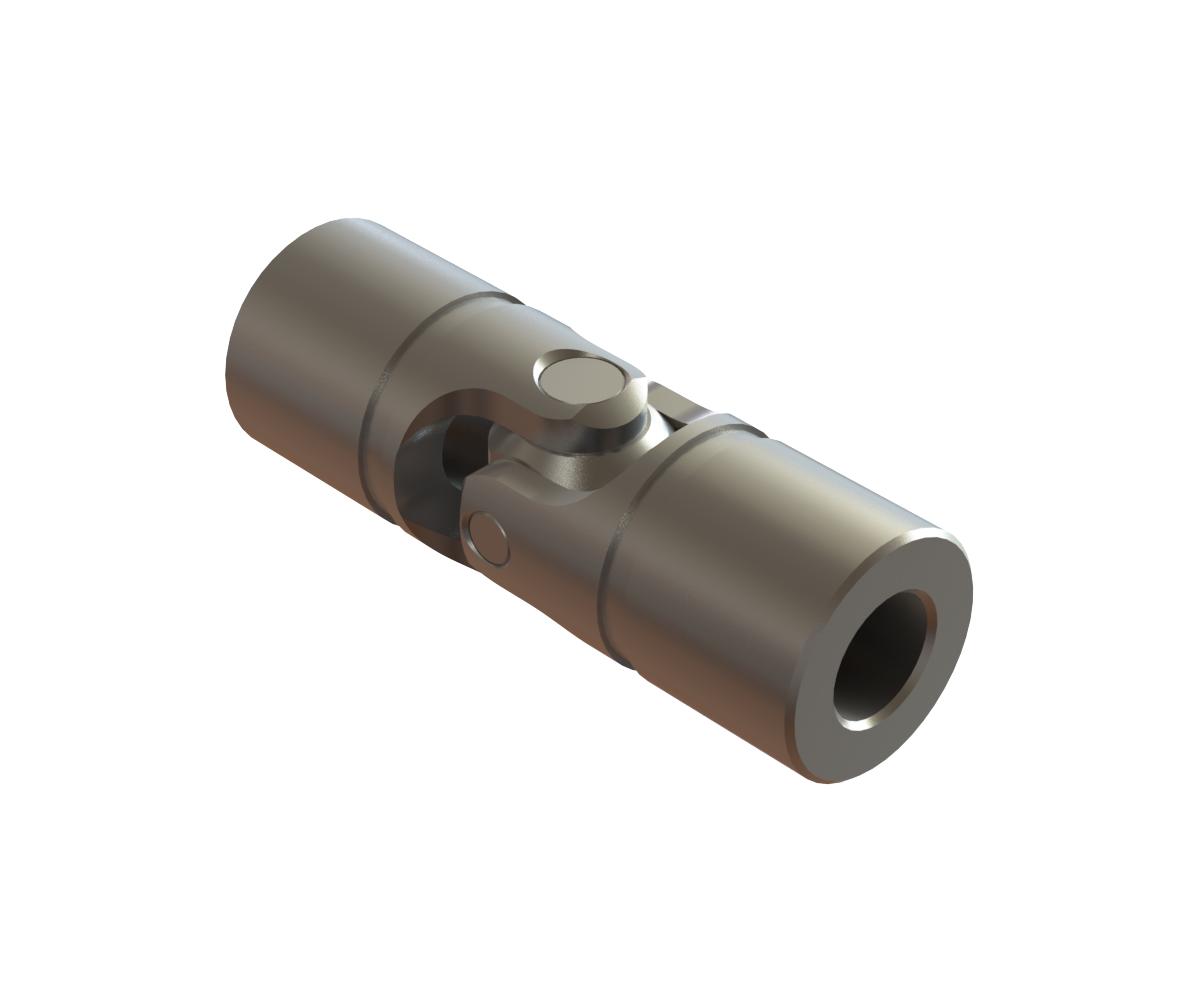

Stainless Steel - Single Universal Joint

Joint Outside Diameter Nominal D (in):

5/8"

Product Specifications

Part Type:

Single Universal Joint

Part Design:

Stainless Steel

Part Style:

Pin & Block - Friction Bearing

Part Material:

Stainless Steel

Performance Data

Ultimate Torque (in-lbf):

475

Ultimate Torque (Nm):

53.70

Torque Rating (in-lbf):

95.0

Torque Rating (Nm):

10.7

Operating_Angle:

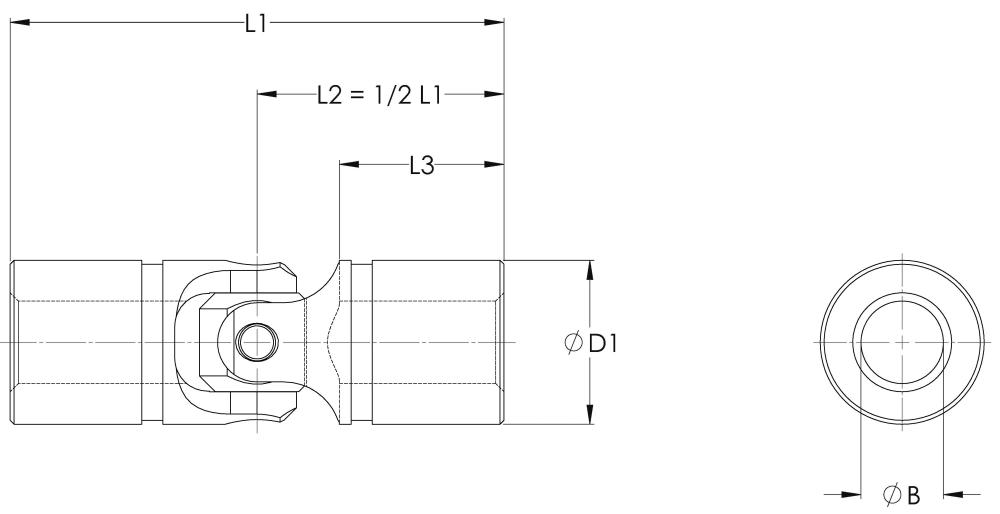

Dimensional Data

Joint Outside Diameter D (in):

0.620

Joint Outside Diameter D (mm):

15.70

Overall Length L1 (in):

2.250

Overall Length L1 (mm):

57.20

Yoke Length L2 (in):

1.125

Yoke Length L2 (mm):

28.60

Hub Depth L3 (in):

0.810

Hub Depth L3 (mm):

20.60

Bore diameter B (in):

0.310

Bore diameter B (mm):

7.94

Bore Type:

Bore

Additional info:

Material Yokes = AISI 303 [1.4305], Material Pins & Blocks = AISI 416 [1.4005]
