Universal Joint with Flange Connection

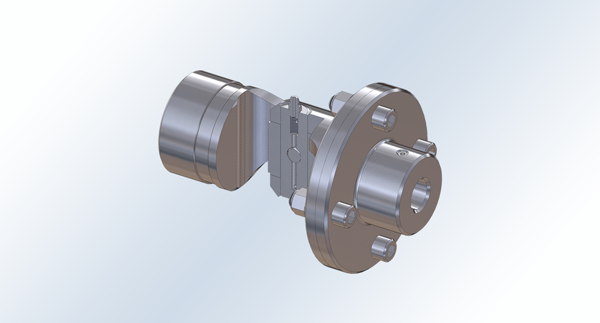

This 2.5” OD universal joint was customized with a flange connection and a mating part to suit mounting and installation requirements. A lubrication distribution system and fittings were added for re-lubrication after washdowns. Belden has designed special pins and fittings that aid the distribution of the lubricant to each plain bearing. All main components were manufactured from 316L stainless steel to resist corrosion from aggressive fluids. (Below image was partially exposed to make the lubrication channel visible.)



For more information on Belden's custom universal joint solutions, visit https://www.beldenuniversal.com/products/custom-universal-joints.
