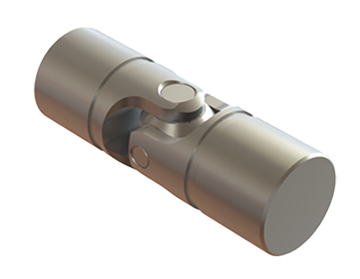

Heavy Duty Universal Joints (Inch Bore)
Belden's Heavy-Duty universal joints are high-quality joints for a variety of standard applications with moderate loads and RPM. They feature friction (plain) bearing design, with large & small pins and snap rings. manufactured from high-grade alloy steel for increased durability and better performance than standard industrial-grade models. Components are selectively heat treated, precision machined and ground to close tolerances. The Heavy Duty universal joint provides exceptional service life for demanding applications. All joints are available with or without a lubricant retaining boot.
Features:
- Breaking Torque: 11-12,429 N-m for Single and 10-11,186 N-m for Double Joints
- Operating Speed: up to 1000 RPM (depending on lubrication)
- Friction (plain) bearing construction

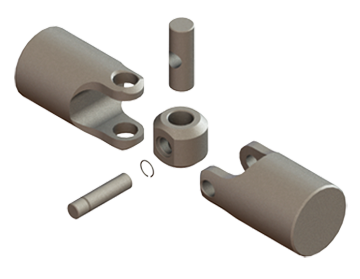

- Large-pin small-pin design with snap ring
- High-grade alloy steel
- Hardened & ground yoke ears, pins and blocks
Torque Values by Outside Diameter
| Nominal OD (in) | Max. Operating Torque Lb-in [N-m] | Ultimate Torque Lb-in [N-m] |
|---|---|---|
Matching Products
| Part Number | ØD1 Nominal (in) | ØD1 Nominal (mm) | ØD1 (in) | ØD1 (mm) | H (in) | H (mm) | D2 (in) | D2 (mm) | ØB (in) | ØB (mm) | L1 (in) | L1 (mm) | L2 (in) | L2 (mm) | L3 (in) | L3 (mm) | L4 (in) | L4 (mm) | K (in) | K (mm) | SS | Bellows | Material | NSN | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UJ-HD1125x563K | 1-1/8" | 1.12 | 28.40 | 0.56 | 14.29 | 3.50 | 88.90 | 1.75 | 44.50 | 1.22 | 31.00 | 1/8 x 1/16 | 1.58x3.18 | 1/4-20x3/16 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1000x12 | 1" | 1.00 | 25.30 | 0.47 | 12.00 | 1.97 | 50.00 | 0.99 | 25.00 | 0.48 | 12.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2000x1000 | 2" | 2.00 | 50.70 | 1.00 | 25.40 | 5.50 | 139.70 | 2.75 | 69.90 | 1.70 | 43.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1750x22K | 1-3/4" | 1.75 | 44.30 | 0.87 | 22.00 | 3.74 | 95.00 | 1.87 | 47.50 | 0.98 | 24.90 | 0.2362x0.976 | 6x24.8 | M6x1.0 x 8mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD750x375 | 3/4" | 0.75 | 18.90 | 0.38 | 9.53 | 2.69 | 68.30 | 1.35 | 34.20 | 0.95 | 24.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD375x05 | 3/8" | 0.37 | 9.40 | 0.20 | 5.00 | 1.58 | 40.00 | 0.79 | 20.00 | 0.58 | 14.70 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x35-140 | 2-1/2" | 2.50 | 63.40 | 1.38 | 35.00 | 5.51 | 140.00 | 2.76 | 70.00 | 1.34 | 34.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1250x00 | 1-1/4" | 1.25 | 31.60 | 3.75 | 95.30 | 1.88 | 47.60 | 1.25 | 31.80 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD1000x12K | 1" | 1.00 | 25.30 | 0.47 | 12.00 | 1.97 | 50.00 | 0.99 | 25.00 | 0.48 | 12.20 | 0.1575x0.543 | 4x13.8 | M4x0.7 x 5mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD375x00 | 3/8" | 0.37 | 9.40 | 1.75 | 44.50 | 0.88 | 22.20 | 0.67 | 17.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD2000x1000K | 2" | 2.00 | 50.70 | 1.00 | 25.40 | 5.50 | 139.70 | 2.75 | 69.90 | 1.70 | 43.20 | 1/4 x 1/8 | 6.35x3.12 | 3/8-16x3/8 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2000x25 | 2" | 2.00 | 50.70 | 0.98 | 25.00 | 4.25 | 108.00 | 2.13 | 54.00 | 1.07 | 27.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD750x375K | 3/4" | 0.75 | 18.90 | 0.38 | 9.53 | 2.69 | 68.30 | 1.35 | 34.20 | 0.95 | 24.10 | 3/32 x 3/64 | 2.38x1.19 | 10-32x1/8 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD500x06 | 1/2" | 0.50 | 12.60 | 0.24 | 6.00 | 1.58 | 40.00 | 0.79 | 20.00 | 0.52 | 13.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x35K-140 | 2-1/2" | 2.50 | 63.40 | 1.38 | 35.00 | 5.51 | 140.00 | 2.76 | 70.00 | 1.34 | 34.00 | 0.3937x1.508 | 10x38.3 | M10x1.5 x 10mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1250x625 | 1-1/4" | 1.25 | 31.60 | 0.63 | 15.88 | 3.75 | 95.30 | 1.88 | 47.60 | 1.25 | 31.80 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1125x14 | 1-1/8" | 1.12 | 28.40 | 0.55 | 14.00 | 2.21 | 56.00 | 1.10 | 28.00 | 0.55 | 14.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD375x188 | 3/8" | 0.37 | 9.40 | 0.19 | 4.76 | 1.75 | 44.50 | 0.88 | 22.20 | 0.67 | 17.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x00 | 2-1/2" | 2.50 | 63.40 | 7.00 | 177.80 | 3.50 | 88.90 | 2.09 | 53.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD2000x25K | 2" | 2.00 | 50.70 | 0.98 | 25.00 | 4.25 | 108.00 | 2.13 | 54.00 | 1.07 | 27.20 | 0.3150x1.114 | 8x28.3 | M8x1.25 x 8mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x00 | 7/8" | 0.87 | 22.10 | 3.00 | 76.20 | 1.50 | 38.10 | 1.03 | 26.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD625x08 | 5/8" | 0.62 | 15.70 | 0.32 | 8.00 | 1.58 | 40.00 | 0.79 | 20.00 | 0.49 | 12.40 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1250x625K | 1-1/4" | 1.25 | 31.60 | 0.63 | 15.88 | 3.75 | 95.30 | 1.88 | 47.60 | 1.25 | 31.80 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x1/4 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1125x14K | 1-1/8" | 1.12 | 28.40 | 0.55 | 14.00 | 2.21 | 56.00 | 1.10 | 28.00 | 0.55 | 14.00 | 0.1969x0.642 | 5x16.3 | M5x0.8 x 5mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD375x188-1SS | N/A | 0.37 | 9.40 | 0.19 | 4.76 | 1.75 | 44.50 | 0.88 | 22.20 | 0.67 | 17.00 | N/A | N/A | 2-56x3/32 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x1250 | 2-1/2" | 2.50 | 63.40 | 1.25 | 31.75 | 7.00 | 177.80 | 3.50 | 88.90 | 2.09 | 53.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2000x30 | 2" | 2.00 | 50.70 | 1.18 | 30.00 | 4.80 | 122.00 | 2.40 | 61.00 | 1.35 | 34.30 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x438 | 7/8" | 0.87 | 22.10 | 0.44 | 11.11 | 3.00 | 76.20 | 1.50 | 38.10 | 1.03 | 26.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD625x08K | 5/8" | 0.62 | 15.70 | 0.32 | 8.00 | 1.58 | 40.00 | 0.79 | 20.00 | 0.49 | 12.40 | 0.0787x0.354 | 2x9 | M3x0.5 x 3mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x00 | 1-1/2" | 1.50 | 38.00 | 4.25 | 108.00 | 2.13 | 54.00 | 1.40 | 35.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD1250x16 | 1-1/4" | 1.25 | 31.60 | 0.63 | 16.00 | 2.56 | 65.00 | 1.28 | 32.50 | 0.65 | 16.50 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD500x00 | 1/2" | 0.50 | 12.60 | 2.00 | 50.80 | 1.00 | 25.40 | 0.74 | 18.80 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD2500x1250K | 2-1/2" | 2.50 | 63.40 | 1.25 | 31.75 | 7.00 | 177.80 | 3.50 | 88.90 | 2.09 | 53.10 | 1/4 x 1/8 | 6.35x3.12 | 3/8-16x1/2 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2000x30K | 2" | 2.00 | 50.70 | 1.18 | 30.00 | 4.80 | 122.00 | 2.40 | 61.00 | 1.35 | 34.30 | 0.3150x1.311 | 8x33.3 | M8x1.25 x 6mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x438K | 7/8" | 0.87 | 22.10 | 0.44 | 11.11 | 3.00 | 76.20 | 1.50 | 38.10 | 1.03 | 26.20 | 3/32 x 3/64 | 2.38x1.19 | 10-32x3/16 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD750x10 | 3/4" | 0.75 | 18.90 | 0.39 | 10.00 | 1.77 | 45.00 | 0.89 | 22.50 | 0.49 | 12.40 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x750 | 1-1/2" | 1.50 | 38.00 | 0.75 | 19.05 | 4.25 | 108.00 | 2.13 | 54.00 | 1.40 | 35.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1250x16K | 1-1/4" | 1.25 | 31.60 | 0.63 | 16.00 | 2.56 | 65.00 | 1.28 | 32.50 | 0.65 | 16.50 | 0.1969x0.720 | 5x18.3 | M5x0.8 x 5mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD500x250 | 1/2" | 0.50 | 12.60 | 0.25 | 6.35 | 2.00 | 50.80 | 1.00 | 25.40 | 0.74 | 18.80 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD3000x00 | 3" | 3.00 | 76.10 | 9.25 | 235.00 | 4.63 | 117.50 | 3.00 | 76.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD2500x30-122 | 2-1/2" | 2.50 | 63.40 | 1.18 | 30.00 | 4.80 | 122.00 | 2.40 | 61.00 | 0.99 | 25.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1000x00 | 1" | 1.00 | 25.30 | 3.38 | 85.70 | 1.69 | 42.90 | 1.19 | 30.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD750x10K | 3/4" | 0.75 | 18.90 | 0.39 | 10.00 | 1.77 | 45.00 | 0.89 | 22.50 | 0.49 | 12.40 | 0.1181x0.449 | 3x11.4 | M3x0.5 x 3mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x750K | 1-1/2" | 1.50 | 38.00 | 0.75 | 19.05 | 4.25 | 108.00 | 2.13 | 54.00 | 1.40 | 35.60 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x5/16 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x18 | 1-1/2" | 1.50 | 38.00 | 0.71 | 18.00 | 2.84 | 72.00 | 1.42 | 36.00 | 0.69 | 17.50 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD500x250-1SS | 1/2" | 0.50 | 12.60 | 0.25 | 6.35 | 2.00 | 50.80 | 1.00 | 25.40 | 0.74 | 18.80 | N/A | N/A | 4-40x1/8 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD3000x1500 | 3" | 3.00 | 76.10 | 1.50 | 38.10 | 9.25 | 235.00 | 4.63 | 117.50 | 3.00 | 76.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x30K-122 | 2-1/2" | 2.50 | 63.40 | 1.18 | 30.00 | 4.80 | 122.00 | 2.40 | 61.00 | 0.99 | 25.10 | 0.3150x1.311 | 8x33.3 | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1000x500 | 1" | 1.00 | 25.30 | 0.50 | 12.70 | 3.38 | 85.70 | 1.69 | 42.90 | 1.19 | 30.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x10 | 7/8" | 0.87 | 22.10 | 0.39 | 10.00 | 1.97 | 50.00 | 0.99 | 25.00 | 0.52 | 13.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1750x00 | 1-3/4" | 1.75 | 44.30 | 5.00 | 127.00 | 2.50 | 63.50 | 1.60 | 40.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD1500x18K | 1-1/2" | 1.50 | 38.00 | 0.71 | 18.00 | 2.84 | 72.00 | 1.42 | 36.00 | 0.69 | 17.50 | 0.2362x0.819 | 6x20.8 | M6x1.0 x 6mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD625x00 | 5/8" | 0.62 | 15.70 | 2.25 | 57.20 | 1.13 | 28.60 | 0.81 | 20.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD3000x1500K | 3" | 3.00 | 76.10 | 1.50 | 38.10 | 9.25 | 235.00 | 4.63 | 117.50 | 3.00 | 76.20 | 3/8 x 3/16 | 9.53x4.76 | 1/2-13x3/8 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x30-140 | 2-1/2" | 2.50 | 63.40 | 1.18 | 30.00 | 5.51 | 140.00 | 2.76 | 70.00 | 1.34 | 34.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1000x500K | 1" | 1.00 | 25.30 | 0.50 | 12.70 | 3.38 | 85.70 | 1.69 | 42.90 | 1.19 | 30.20 | 1/8 x 1/16 | 1.58x3.18 | 1/4-20x3/16 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x10K | 7/8" | 0.87 | 22.10 | 0.39 | 10.00 | 1.96 | 50.00 | 0.98 | 24.90 | 0.52 | 13.20 | 0.1181x0.449 | 3x11.4 | M3x0.5 x 3mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1750x875 | 1-3/4" | 1.75 | 44.30 | 0.88 | 22.23 | 5.00 | 127.00 | 2.50 | 63.50 | 1.60 | 40.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x20 | 1-1/2" | 1.50 | 38.00 | 0.79 | 20.00 | 3.23 | 82.00 | 1.61 | 41.00 | 0.89 | 22.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD625x313 | 5/8" | 0.62 | 15.70 | 0.31 | 7.94 | 2.25 | 57.20 | 1.13 | 28.60 | 0.81 | 20.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD4000x00 | 4" | 4.00 | 101.50 | 10.63 | 270.00 | 5.32 | 135.00 | 3.25 | 82.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD2500x30K-140 | 2-1/2" | 2.50 | 63.40 | 1.18 | 30.00 | 5.51 | 140.00 | 2.76 | 70.00 | 1.34 | 34.00 | 0.3150x1.311 | 8x33.3 | M8x1.25 x 12mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1125x00 | 1-1/8" | 1.12 | 28.40 | 3.50 | 88.90 | 1.75 | 44.50 | 1.22 | 31.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD875x12 | 7/8" | 0.87 | 22.10 | 0.47 | 12.00 | 1.97 | 50.00 | 0.99 | 25.00 | 0.52 | 13.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1750x875K | 1-3/4" | 1.75 | 44.30 | 0.88 | 22.23 | 5.00 | 127.00 | 2.50 | 63.50 | 1.60 | 40.60 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x5/16 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1500x20K | 1-3/4" | 1.50 | 38.00 | 0.79 | 20.00 | 3.23 | 82.00 | 1.61 | 41.00 | 0.89 | 22.60 | 0.2362x0.898 | 6x22.8 | M6x1.0 x 6mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD625x313K | 5/8" | 0.62 | 15.70 | 0.31 | 7.94 | 2.25 | 57.20 | 1.13 | 28.60 | 0.81 | 20.60 | 3/32 x 3/64 | 2.38x1.19 | 10-32x1/8 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD4000x2000 | 4" | 4.00 | 101.50 | 2.00 | 50.80 | 10.63 | 270.00 | 5.32 | 135.00 | 3.25 | 82.60 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x35-122 | 2-1/2" | 2.50 | 63.40 | 1.38 | 35.00 | 4.80 | 122.00 | 2.40 | 61.00 | 0.99 | 25.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD1125x563 | 1-1/8" | 1.12 | 28.40 | 0.56 | 14.29 | 3.50 | 88.90 | 1.75 | 44.50 | 1.22 | 31.00 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD875x12K | 7/8" | 0.87 | 22.10 | 0.47 | 12.00 | 1.96 | 50.00 | 0.98 | 24.90 | 0.52 | 13.20 | 0.1575x0.543 | 4x13.8 | M4x0.7 x 4mm | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2000x00 | 2" | 2.00 | 50.70 | 5.50 | 139.70 | 2.75 | 69.90 | 1.70 | 43.20 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD1750x22 | 1-3/4" | 1.75 | 44.30 | 0.87 | 22.00 | 3.74 | 95.00 | 1.87 | 47.50 | 0.98 | 24.90 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD750x00 | 3/4" | 0.75 | 18.90 | 2.69 | 68.30 | 1.35 | 34.20 | 0.95 | 24.10 | N/A | N/A | N/A | N/A | Alloy Steel | N/A | ||||||||||
| UJ-HD4000x2000K | 4" | 4.00 | 101.50 | 2.00 | 50.80 | 10.63 | 270.00 | 5.32 | 135.00 | 3.25 | 82.60 | 1/2 x 1/4 | 12.7x6.35 | 1/2-13x3/4 | N/A | Alloy Steel | N/A | ||||||||
| UJ-HD2500x35K-122 | 2-1/2" | 2.50 | 63.40 | 1.38 | 35.00 | 4.80 | 122.00 | 2.40 | 61.00 | 0.99 | 25.10 | 0.3937x1.508 | 10x38.3 | N/A | N/A | Alloy Steel | N/A |
