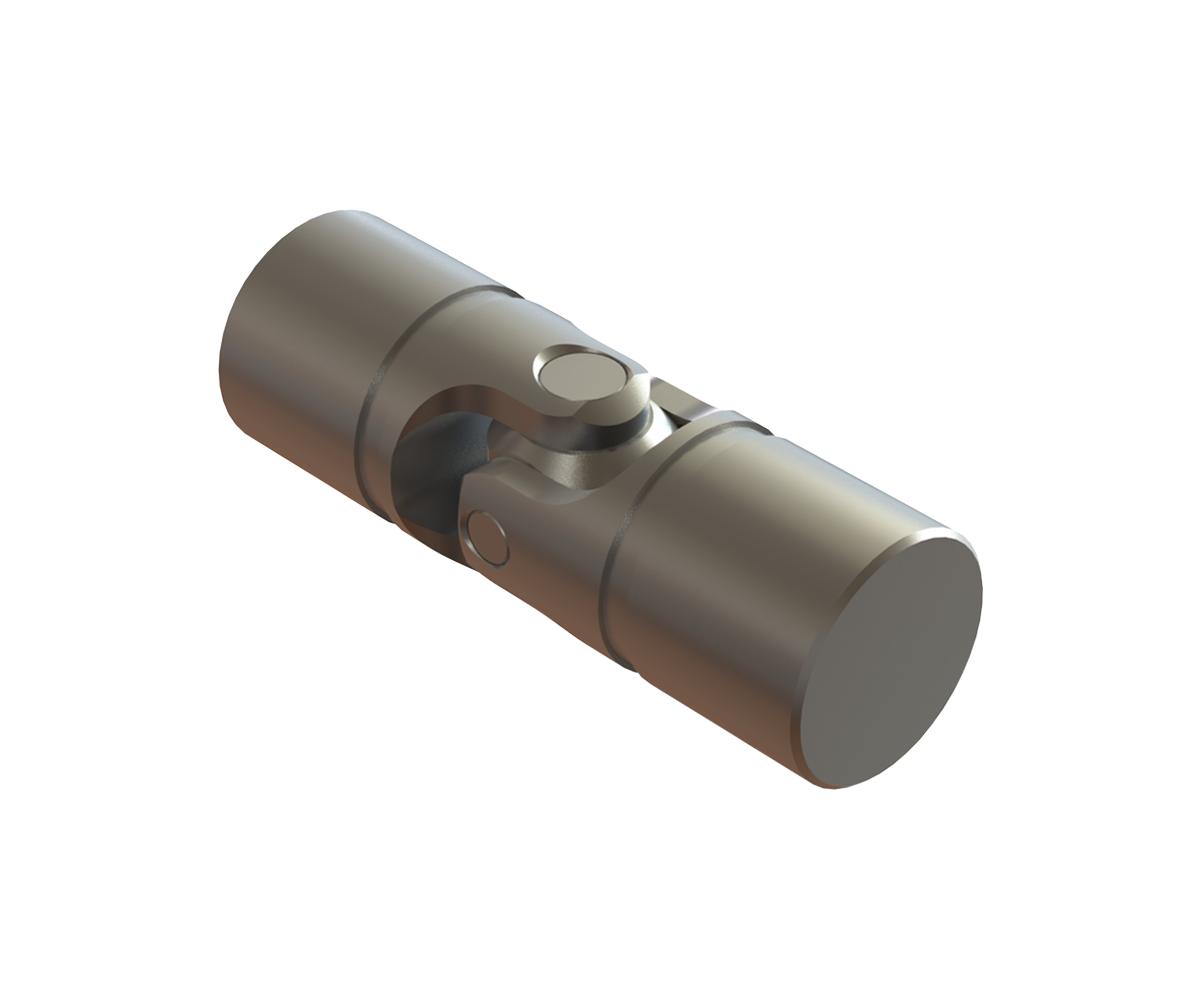

Heavy Duty - Single Universal Joint UJ-HD1000x00
General Information
Heavy Duty - Single Universal Joint
Joint Outside Diameter Nominal D (in)
1"
Product Specifications
Part Type
Single Universal Joint
Part Design
Heavy Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

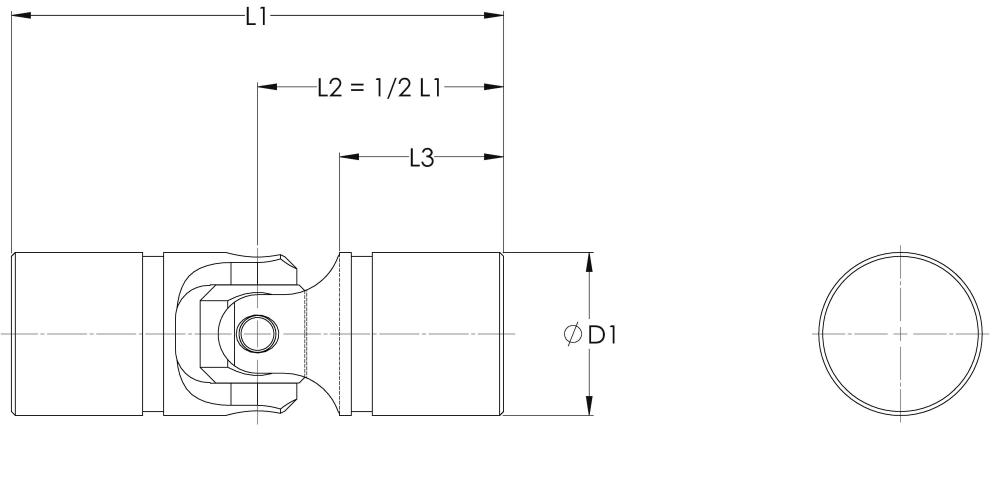

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
995.000
25.3
Overall Length L1 (in)
Overall Length L1 (mm)
3.375 85.73
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.688
42.86
Hub Depth L3 (in)
Hub Depth L3 (mm)
1.190 30.23
Bore Type
Solid
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
2250
254.20
Torque Rating (in-lbf)
Torque Rating (Nm)
450.0 50.8
Stall Torque (in-lbf)
Stall Torque (Nm)
1125 127.1
Operating Angle
45
Additional Data
Min Temp. Limit (°C)
-10.0
Min Temp. Limit (°F)
14.0
Max Temp. Limit (°C)
300.0
Weight (kg)
0.3
Weight (lb)
0.64
