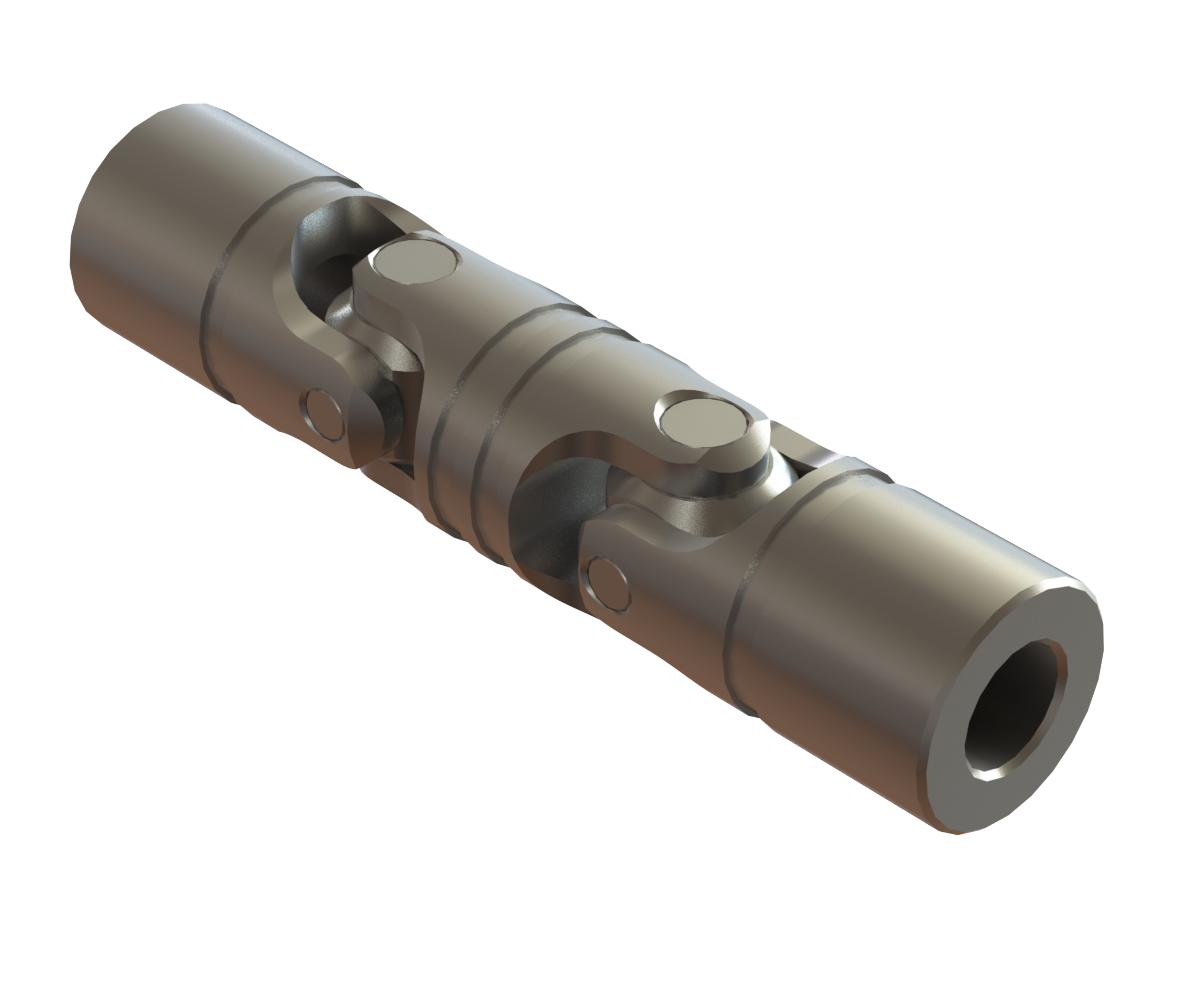

Heavy Duty - Double Universal Joint DUJ-HD750x375

Heavy Duty - Double Universal Joint
Heavy Duty - Double Universal Joint
Download Reference Drawings Download CAD Pricing Request Customize this Double Universal Joint

General Information

Heavy Duty - Double Universal Joint
Joint Outside Diameter Nominal D (in)
3/4"

Product Specifications

Part Type
Double Universal Joint
Part Design
Heavy Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

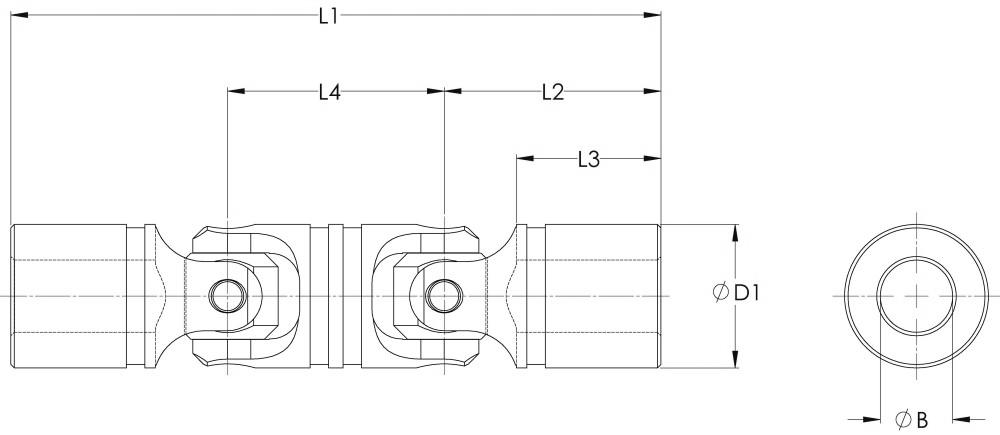

Dimensional Data

Joint Outside Diameter D (in) Joint Outside Diameter D (mm)
745.000
18.9
Overall Length L1 (in) Overall Length L1 (mm)
3.813 96.85
Yoke Length L2 (in) Yoke Length L2 (mm)
1.344
34.14
Centered Yoke Length (in) Centered Yoke Length (mm)
1.125
28.58
Hub Depth L3 (in) Hub Depth L3 (mm)
0.950 24.13
Bore diameter B (in) Bore diameter B (mm)
375.000 375.000
Bore Type
Bore

Performance Data

Ultimate Torque (in-lbf) Ultimate Torque (Nm)
1125
127.10
Torque Rating (in-lbf) Torque Rating (Nm)
225.0 25.4
Stall Torque (in-lbf) Stall Torque (Nm)
563 63.6
Operating Angle
45

Additional Data

Maximum parallel Offset (in) Maximum parallel Offset (mm)
0.8 20.2
Min Temp. Limit (°C)
-10.0
Min Temp. Limit (°F)
14.0
Max Temp. Limit (°C)
300.0
Weight (kg)
0.2
Weight (lb)
0.32

Additional Information

Maximum Parallel Offset 0.80" [20.2mm]

Heavy Duty Universal Joints

Standard universal joints, built with blocks and large & small diameter pins.
