MS20271B16

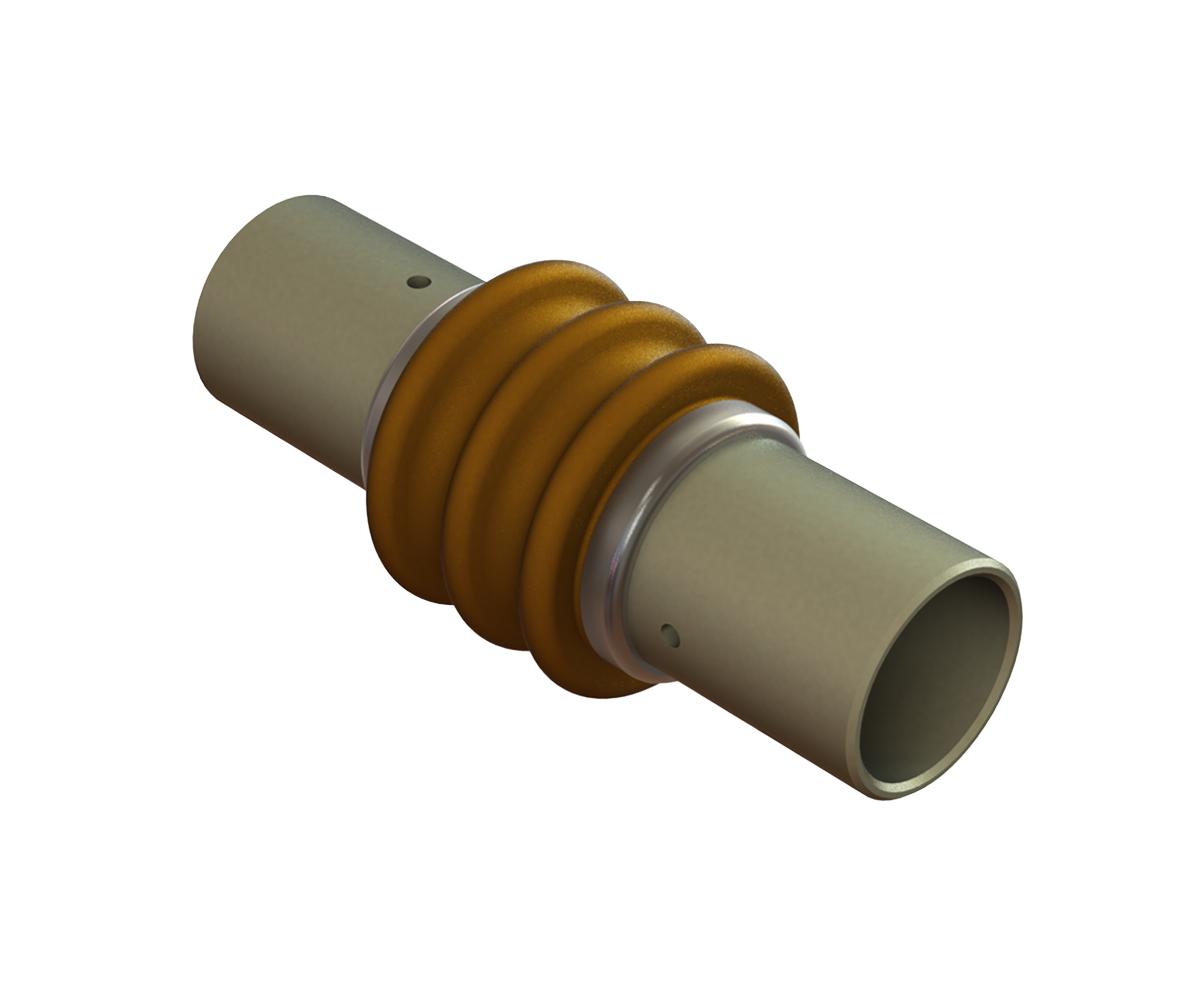

Military Standard Heavy Duty - Single Universal Joint MS20271B16

Military Standard Heavy Duty - Single Universal Joint
Military Standard Heavy Duty - Single Universal Joint
Download Reference Drawings Download CAD Pricing Request Customize this Single Universal Joint

General Information

Military Standard Heavy Duty - Single Universal Joint
Joint Outside Diameter Nominal D (in)
1"

Product Specifications

Part Type
Single Universal Joint
Part Design
Military Standard Heavy Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

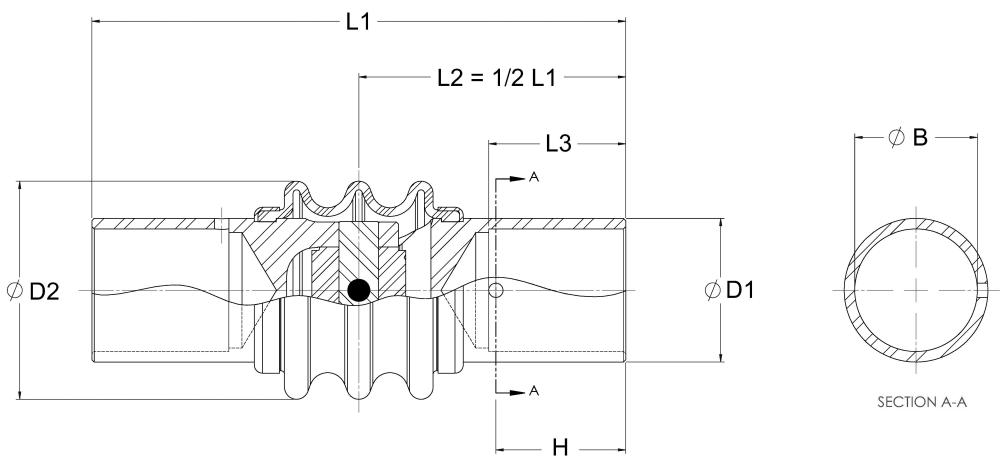

Dimensional Data

Joint Outside Diameter D (in) Joint Outside Diameter D (mm)
995.000
25.3
Insp. Hole Location H (in) Insp. Hole Location H (mm)
1.060 27.00
Overall Length L1 (in) Overall Length L1 (mm)
4.063 103.19
Yoke Length L2 (in) Yoke Length L2 (mm)
2.031
51.59
Hub Depth L3 (in) Hub Depth L3 (mm)
1.125 28.58
Bore diameter B (in) Bore diameter B (mm)
813.000 813.000
Bore Type
Bore

Performance Data

Ultimate Torque (in-lbf) Ultimate Torque (Nm)
4700
531.10
Torque Rating (in-lbf) Torque Rating (Nm)
705.0 79.7
Stall Torque (in-lbf) Stall Torque (Nm)
2350 265.5
Axial Failure Load (lbf)
5000.0
Axial Failure Load (n)
22241.0
Operating Angle
35

Additional Data

Weight (kg)
0.2
Weight (lb)
0.46

Additional Information

Military Standard Heavy Duty Universal Joints

Per MIL-DTL-6193 with blind bores and grease-filled protective boot covers.
