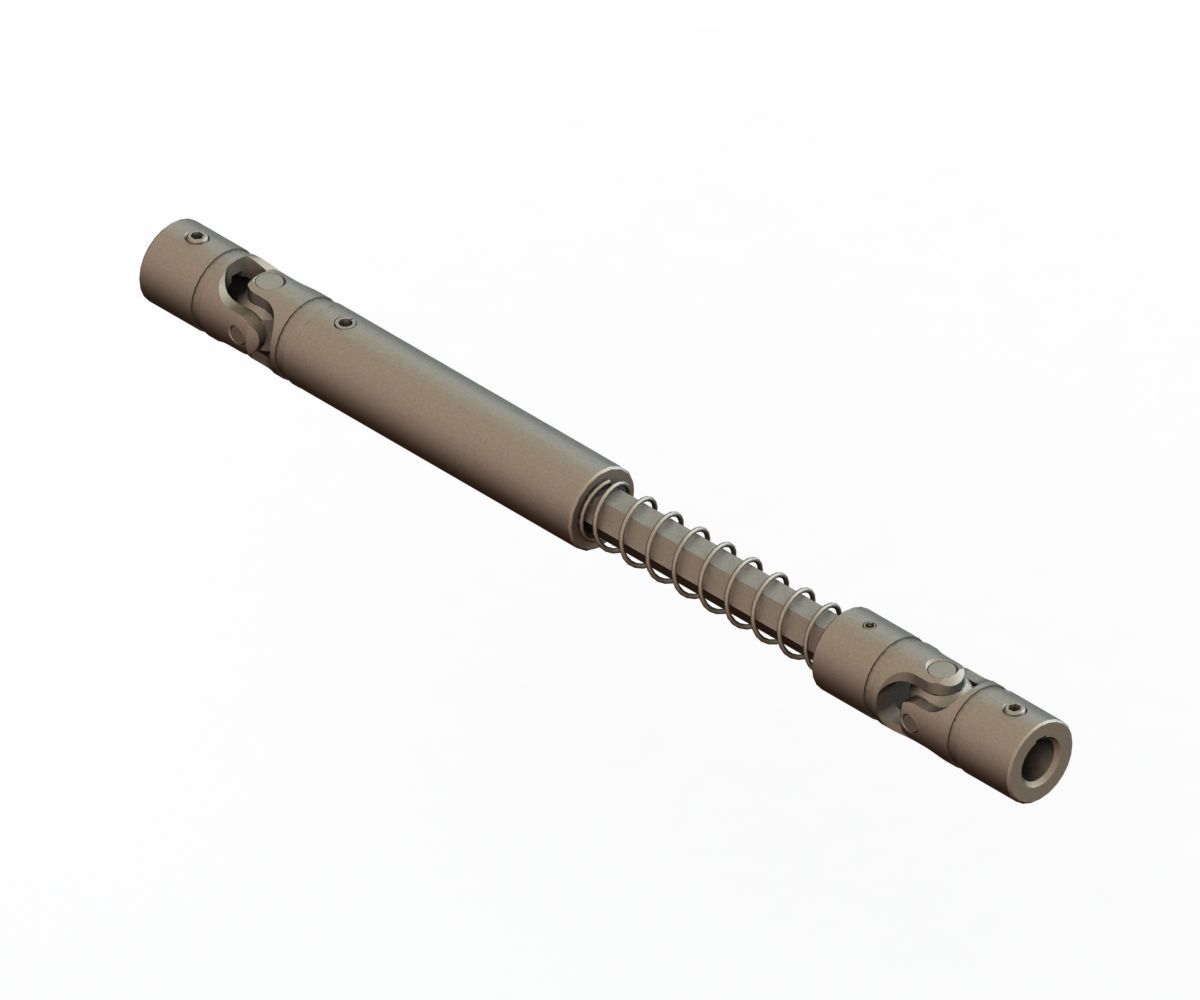

Heavy Duty - Telescopic Drive Shaft TUJ-HD1000x500K
General Information
Heavy Duty - Telescopic Drive Shaft
Joint Outside Diameter Nominal D (in)
1"
Product Specifications
Part Type
Telescopic Drive Shaft
Part Design
Heavy Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

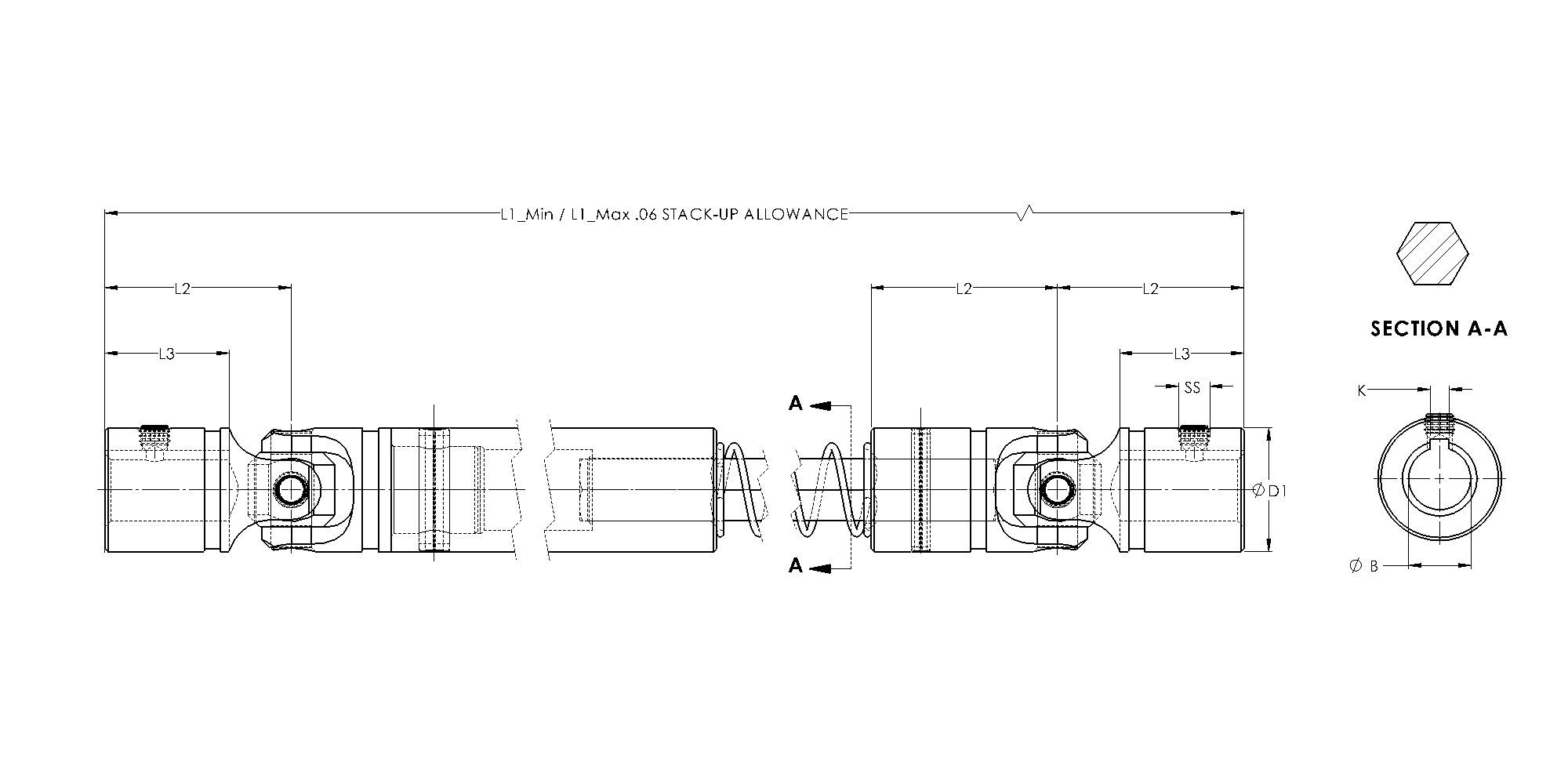

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
995.000
25.3
Overall Length Min (in)
Overall Length Min (mm)
11.3 285.8
Overall Length max (in)
Overall Length max (mm)
11.3 362.0
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.688
42.88
Hub Depth L3 (in)
Hub Depth L3 (mm)
1.190 30.23
Bore diameter B (in)
Bore diameter B (mm)
0.500 0.500
Keyway K (in)
Keyway K (mm)
1/8 x 1/16
3.18x1.58
Set Screw
1/4-20x3/16
Bore Type
Bore, Keyway & Setscrew
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
2025
228.80
Torque Rating (in-lbf)
Torque Rating (Nm)
405.0 45.8
Stall Torque (in-lbf)
Stall Torque (Nm)
600 67.8
Operating Angle
45
Additional Data
Maximum parallel Offset (in)
Maximum parallel Offset (mm)
7.7 195.3
Min Temp. Limit (°C)
-10.0
Min Temp. Limit (°F)
14.0
Max Temp. Limit (°C)
300.0
Weight (kg)
0.9
Weight (lb)
1.90
Additional Information
Hex Sliding Profile, Spring Loaded
