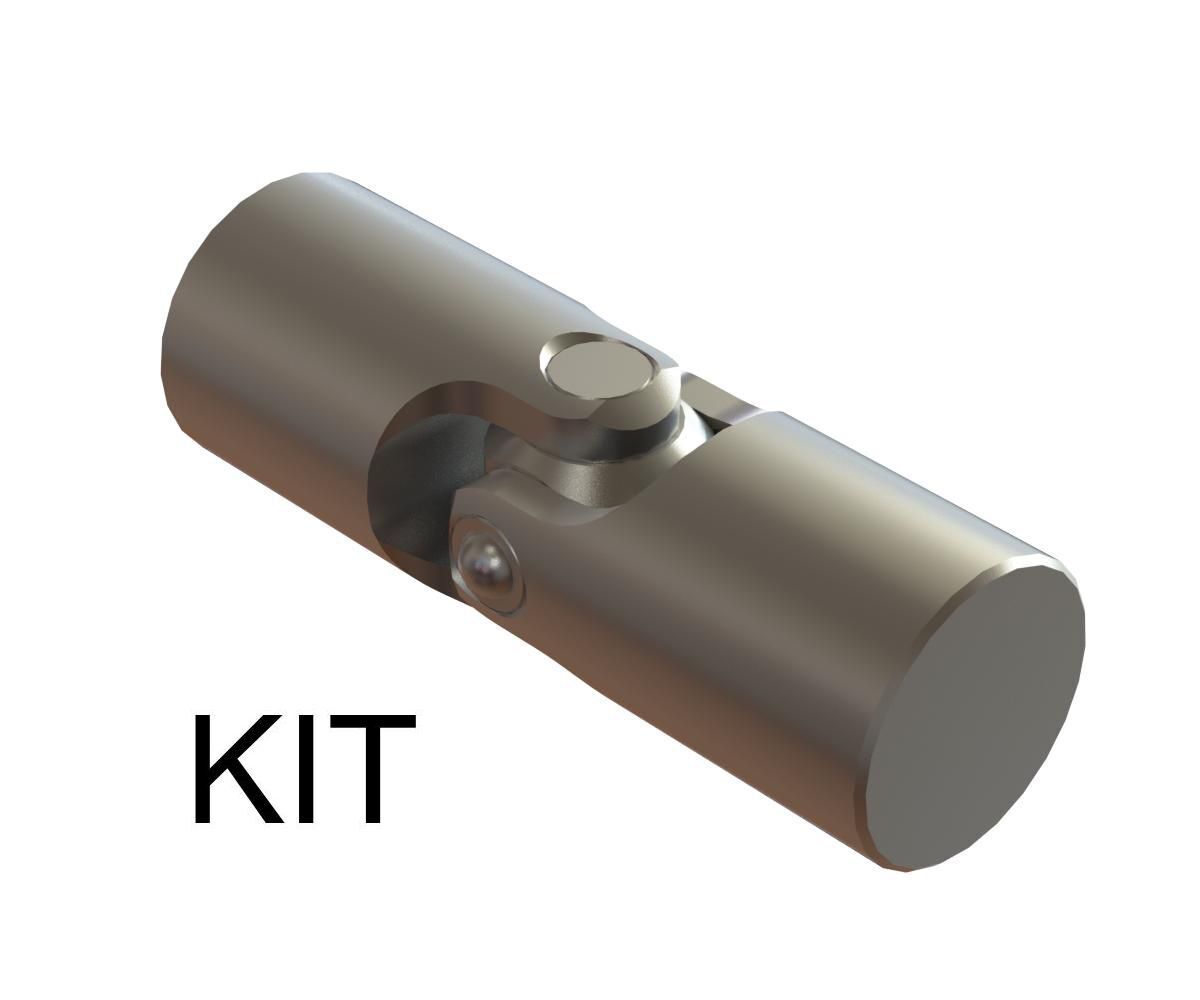

Heavy Duty - Single Universal Joint UJ-HD4000x00 KIT
General Information
Heavy Duty - Single Universal Joint
Joint Outside Diameter Nominal D (in)
4"
Product Specifications
Part Type
Single Universal Joint
Part Design
Heavy Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel
Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
3.995
101.5
Overall Length L1 (in)
Overall Length L1 (mm)
10.630 270.00
Yoke Length L2 (in)
Yoke Length L2 (mm)
5.315
135.00
Hub Depth L3 (in)
Hub Depth L3 (mm)
3.250 82.55
Bore Type
Solid
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
110000
12429.40
Torque Rating (in-lbf)
Torque Rating (Nm)
22000.0 2485.9
Stall Torque (in-lbf)
Stall Torque (Nm)
55000 6214.7
Operating Angle
45
Additional Data
Min Temp. Limit (°C)
-10.0
Min Temp. Limit (°F)
14.0
Max Temp. Limit (°C)
300.0
Weight (kg)
14.1
Weight (lb)
31.08
Additional Information
KIT, Unassembled
